Roller Undermount Brackets
Roller Slide Brackets
- Supports roller undermount slide installation.
- Helps maintain compatibility with existing slide systems.
- Provides side-to-side adjustment flexibility.
- Works with common cabinet drilling patterns.
| Material | Plastic |
|---|---|
| Primary Applications | Roller undermount slide installation, rear drawer slide support, face frame cabinet assembly, cabinet drawer mounting, slide bracket applications |
Benefits & Features
- Roller Undermount Slide Support: Provides a bracket solution for roller undermount drawer slide installation in face-frame cabinetry.
- Legacy Slide Compatibility: Helps support existing cabinet programs that continue to use roller undermount slide systems.
- Side-to-Side Adjustability: Offers adjustment flexibility to support proper drawer alignment and fit.
- Common Hole Pattern Support: Helps simplify installation by working with established cabinet drilling patterns.
Videos
Tenn-Tex Bracket Solutions
SKU Specifications
| SKU | Description | Back Thickness | Handed | Hole Pattern |
|---|---|---|---|---|

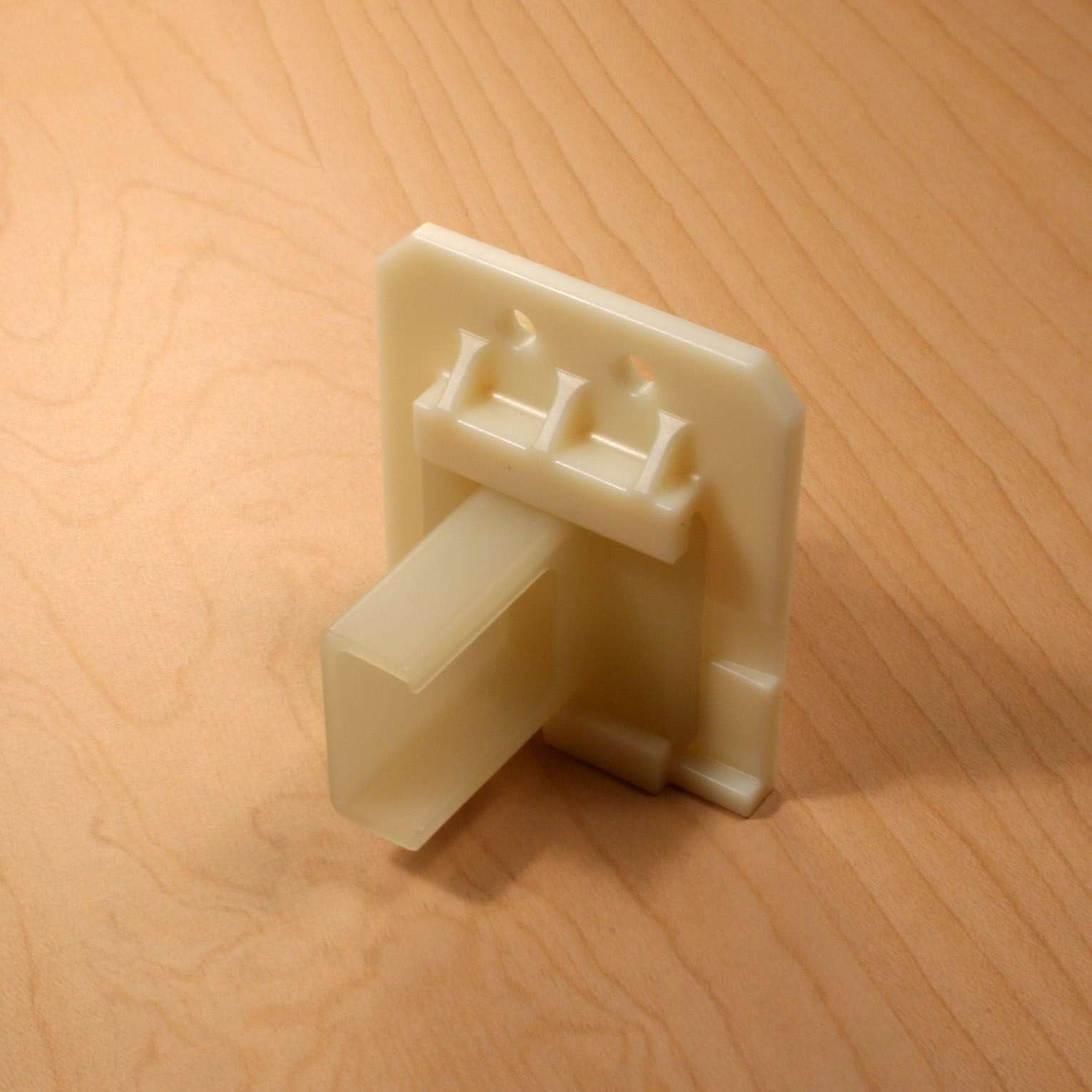

| C-668 | Sidemount Adj. Rear Bracket, 10 mm 1/8”, Dowels, Left, Short | 0.13 | Left | X = 3.5 mm, Y = 3 mm |
| C-552-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 0.13 | Right | X = 3.5 mm, Y = 3 mm |
| C-552 | Undermount Adj. Bracket, 10mm Dowels, Left | 0.13 | Left | X = 3.5 mm, Y = 3 mm |
| C-414-01 | Roller Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short (Grass Express) | 0.13 | Right | X = 3.5 mm, Y = 3 mm |
| C-414 | Roller Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short (Grass Express) | 0.13 | Left | X = 3.5 mm, Y = 3 mm |
| C-374-01 | Roller Undermount Adj. Bracket, 10 mm Dowels, Right (Grass Express) | 0.25 | Right | X = 3.5 mm, Y = 3 mm |
| C-374 | Roller Undermount Adj. Bracket, 10 mm Dowels, Left (Grass Express) | 0.25 | Left | X = 3.5 mm, Y = 3 mm |
| C-373-01 | Roller Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right (Grass Express) | 0.13 | Right | X = 3.5 (28) mm, Y = 8 mm |
| C-373 | Roller Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left (Grass Express) | 0.13 | Left | X = 3.5 (28) mm, Y = 8 mm |
| C-372-01 | Roller Undermount Adj. Bracket, 10 mm Dowels, Right (Grass Express) | 0.25 | Right | X = 3.5 (28) mm, Y = 8 mm |
| C-372 | Roller Undermount Adj. Bracket, 10 mm Dowels, Left (Grass Express) | 0.25 | Left | X = 3.5 (28) mm, Y = 8 mm |
| C-371-01 | Roller Undermount Adj. Bracket, Screw-On, Right (Grass Express) | Right | X = 1.5 mm, Y = 6.5 mm | |
| C-371 | Roller Undermount Adj. Bracket, Screw-On, Left (Grass Express) | Left | X = 1.5 mm, Y = 6.5 mm | |
| C-370-01 | Roller Undermount Adj. Bracket, 8 mm Dowels, Right (Grass Express) | 0.13 | Right | X = 16 mm, Y = 3.5 mm |
| C-370 | Roller Undermount Adj. Bracket, 8 mm Dowels, Left (Grass Express) | 0.13 | Left | X = 16 mm, Y = 3.5 mm |
| C-369-01 | Roller Undermount Adj. Bracket, 8 mm Dowels, Right (Grass Express) | 0.13 | Right | X = 0 mm, Y = 3 mm |
| C-369 | Roller Undermount Adj. Bracket, 8 mm Dowels, Left (Grass Express) | 0.13 | Left | X = 0 mm, Y = 3 mm |
| C-368-01 | Roller Undermount Adj. Bracket, 8 mm Dowels, Right (Grass Express) | 0.38 | Right | X = 3.5 mm, Y = 16 mm |
| C-368 | Roller Undermount Adj. Bracket, 8 mm Dowels, Left (Grass Express) | 0.38 | Left | X = 3.5 mm, Y = 16 mm |
| C-240 | Roller Undermount Bracket, 10mm Dowels (Grass Express) |
