QuikTRAY

A: Yes, your Distributor stocks all three types of hook dowels. T-506 for Ball Bearing Slides, T-507 Hook Dowels if you need an additional ¼” thickness to clear your door hinge and our most popular T-508 Hook Dowels for Undermount Slides.

A: Yes, but please make sure that you have left and right sides with matching hole patterns.

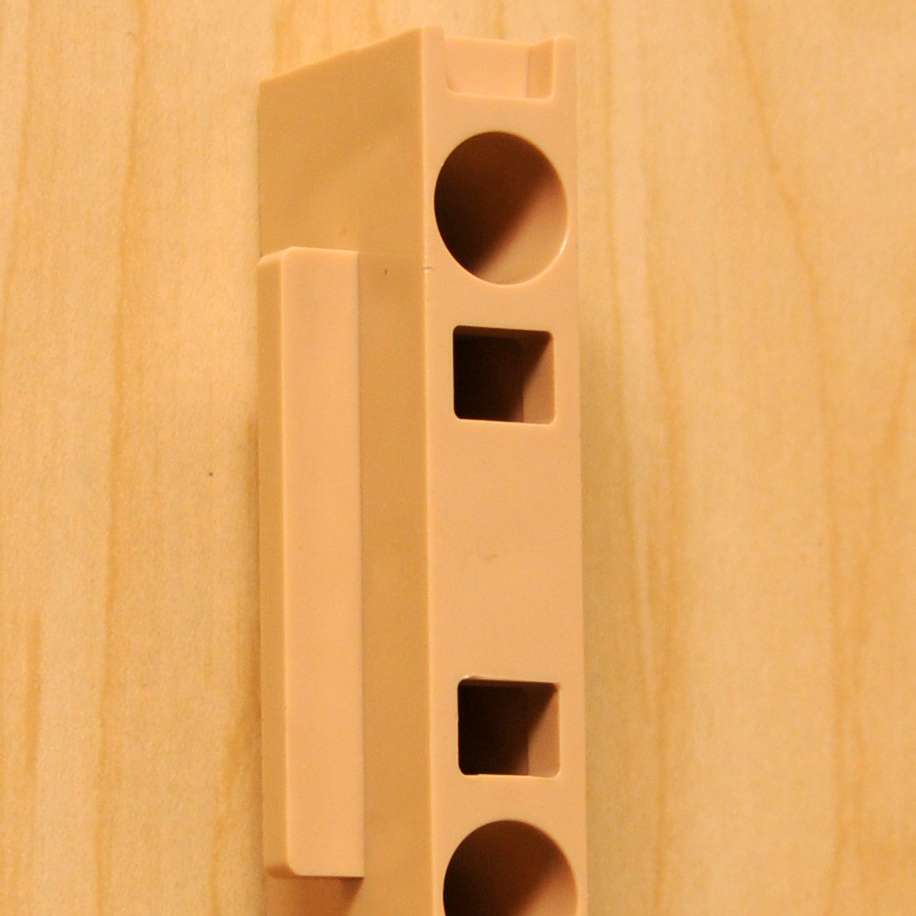

A: Yes, we recommend the T-531 short (4″) pilaster. Consider building your roll-out tray to full width but shorter in depth determined by the actual plumbing in the back of the cabinet.

A: Your most likely using the small holes (4 mm diameter, one each at the front and back). These holes are NOT made for flat head screws. Please use the larger holes in the tabs designed for euro screws and/or flat head screws.

A: Hook Dowels must be attached to the slide of your choice with the hook pointing up.

A: Yes, QuikTRAY provides 4 hole locations 160 mm on center. Fasten the Pilaster to the end panel with Euroscrews at least 11 mm long. The Euroscrews should have a round head.

A: Our T-507 hook dowel has a built-in spacer 1/4″ thick. This will give you a total of 1 1/2″ standoff. If more is needed, a wood spacer behind the Pilaster is the best solution. If more distance is needed, please use or T-503 2″ Pilaster.

A: 6-way CAM hinges recently introduced by the major concealed hinge manufacturers require more clearance and the T-502 accommodates these hinges.

A: Use the short (4″) T-531 which will allow you to install a single roll-out on the bottom of the cabinet.

A: For best performance we recommend the use of the T-508 Undermount Hook Dowels.

A: We offer 2 lengths, 4″ and 20″. In applications such as pantries, simply stack several pilasters on top of each other.

A: Tenn-Tex Plastics Inc. has tested the most popular slides on the market with a 75 lbs load at 100,000 cycles. We recommend a maximum of 3 roll-outs per 20″ long Pilaster, each with a maximum load of 75 lbs. In any case, please observe the slide manufacturers published maximum load ratings.

A: We offer a 1″, a 1 1/4″ and a 2″ thick version. Additionally, any pilaster thickness can be boosted by 1/4″ by using the T-507 shouldered hook dowel.

A: We recommend a double captive type slide for best performance only. A single captive epoxy slide will allow the drawer member to separate from the cabinet member and your drawer will fall in the cabinet.

A: You can use any type of slide on the market. When using epoxy coated (European type) slides, please attach the front hook dowel at a maximum of 37 mm from the front of the slide. Use only Grass Double Captive Slides.
