Undermount Brackets
Slide Mount Brackets
- Simplifies installation for undermount slides.
- Supports side-to-side drawer slide adjustment.
- Works with common cabinet back drilling patterns.
- Backplate and intermediate options available.
- Designed for repeatable cabinet assembly.
| Material | Plastic |
|---|---|
| Primary Applications | Undermount drawer slide installation, concealed slide mounting, face frame cabinetry, rear bracket support, cabinet drawer assembly |
Benefits & Features
- Simplified Undermount Installation: Helps make the transition to undermount drawer slides easier without requiring major cabinet construction changes.
- Side-to-Side Adjustability: Provides adjustment flexibility to help improve drawer alignment and consistent slide performance.
- Shared Hole Pattern Options: Designed to work with common drilling patterns used across multiple slide configurations.
- Flexible Bracket Solutions: Backplates and intermediates can be paired to support different slide, cabinet back, and manufacturing requirements.
- Efficient Cabinet Assembly: Helps reduce complexity on the production line while supporting a clean, reliable drawer installation.
Videos
Tenn-Tex Bracket Solutions
SKU Specifications
| SKU | Description | Dowel Diameter | Hole Pattern | Back Thickness | Handed |
|---|---|---|---|---|---|
| C-786 | Undermount Adj. Bracket, 8 mm Dowels, Left (For Blum Tandem Edge Slide Only) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-784-01 | Undermount Adj. Bracket, 10 mm Dowels, Right (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |

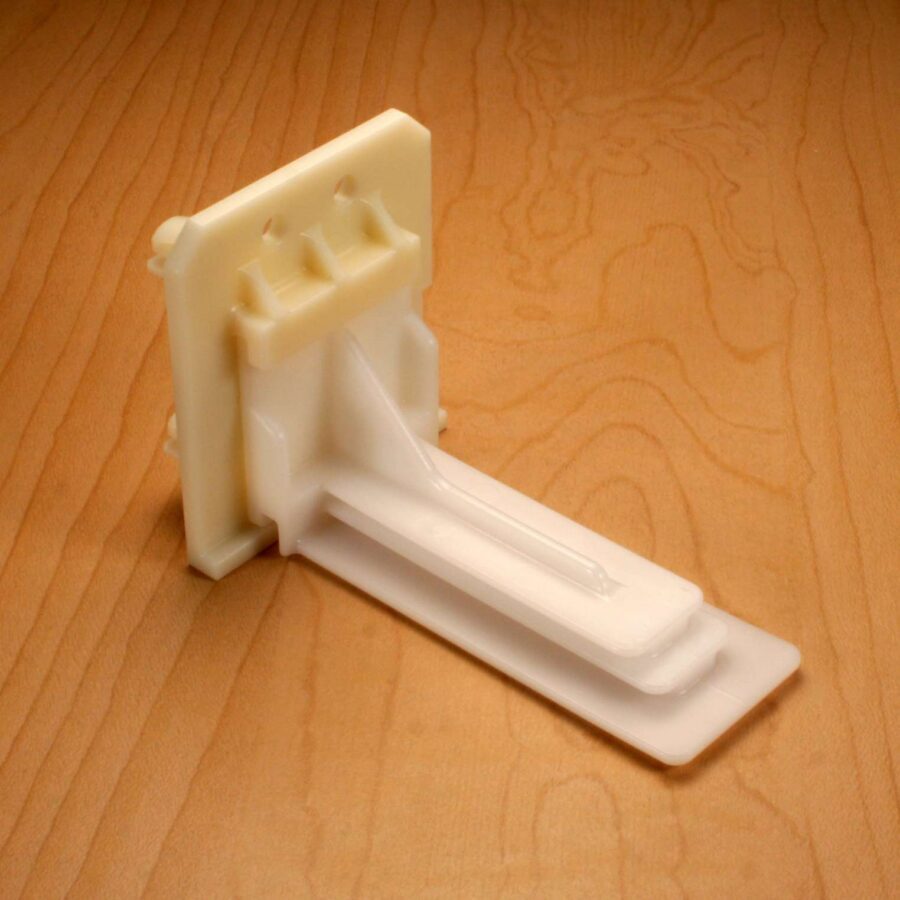

| C-784 | Undermount Adj. Bracket, 10 mm Dowels, Left (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-783-01 | Undermount Adj. Bracket, 8mm Dowels, Right (For Blum Tandem Edge Slide Only) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-783 | Undermount Adj. Bracket, 8mm Dowels, Left (For Blum Tandem Edge Slide Only) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-782 | Undermount Adj. Bracket, Screw-On (For Blum Tandem Edge Slide Only) | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-781 | Undermount Adj. Bracket, 8 mm Dowels (For Blum Tandem Edge Slide Only) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-764-01 | Undermount Adj. Bracket, 10mm Dowels ,Right (C-335-01 and C-799) | Right | |||
| C-836 | Salice F70 New Assembly with C-307 | ||||
| C-835 | Salice F70 New Assembly with C-274 | ||||
| C-828 | Undermount Bracket, 8mm dowels, 35mm stop (C-307 and C-575) | ||||
| C-821-01 | Undermount Adj. Bracket, 8mm Short Dowels, Right (Top and Bottom Stops) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-821 | Undermount Adj. Bracket, 8mm Short Dowels, Left (Top and Bottom Stops) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-820-01 | Undermount Adj. Bracket, 10mm Short Dowels, Right (Top and Bottom Stops) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-764 | Undermount Adj. Bracket, 10mm Dowels, Left (C-335 and C-799) | Left | |||
| C-705 | Undermount Adj. Bracket, 8 mm Dowels, No Stop (C-307 & C-799) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-704 | Undermount Adj. Bracket, 10mm Dowels, Left (Top and Bottom Stops) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-702 | Undermount Bracket, 8MM Dowels, Universal Thick, NO STOP (C-578 and C799) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-701 | Undermount Bracket, 8MM Dowels, Universal Thick, 47 mm Stop, Maxcess (C-578 and C-795) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-696-01 | Undermount Extension Adj. Bracket, 1/8", 10 mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-820 | Undermount Adj. Bracket, 10mm Short Dowels, Left (Top and Bottom Stops) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-816 | Undermount Adj. Bracket, 10mm Dowels, (C-274 and C-799) | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-812 | Undermount Adj. Bracket, AWC Right Bracket | Right | |||
| C-811 | Undermount Adj. Bracket, AWC Left Bracket | Left | |||
| C-796-01 | Undermount Adjustable Bracket, 10 MM Dowels, Right (C-539-01 +C-795) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-796 | Undermount Adjustable Bracket, 10 MM Dowels, Left (C-539 +C-795) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | |
| C-794-01 | Undermount Adjustable bracket, 10mm Dowels 1/8”Right (C-298-01 and C-792) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-794 | Undermount Adjustable bracket, 10mm Dowels 1/8”Right (C-298-01 and C-792) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | |
| C-686-01 | Undermount Extension Adj. Bracket, 10 mm Dowels Short, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-686 | Undermount Extension Adj. Bracket, 10 mm Dowels Short, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-685-01 | Undermount Extension Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-696 | Undermount Extension Adj. Bracket, 1/8", 10 mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-793 | Undermount Extension Adjustable Bracket 8 mm Dowel (C-307 and C-792) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-790-01 | Undermount Adj. Bracket, 10mm Dowels, Right (C-539-01 / C-780) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-790 | Undermount Adj. Bracket, 10mm Dowels, Left (C-539 / C-780) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-789-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-789 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-685 | Undermount Extension Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-684-01 | Undermount Extension Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-684 | Undermount Extension Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-683-01 | Undermount Extension Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-683 | Undermount Extension Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-682-01 | Undermount Extension Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | Right |
| C-682 | Undermount Extension Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | Left |
| C-681-01 | Undermount Extension Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-681 | Undermount Extension Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-680-01 | Undermount Extension Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-590 | Undermount Bracket, 8MM Dowels, Universal Thick, Narrow (C-578 and C-346) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-589 | Undermount Bracket, 8MM Dowels, Universal Thick, 36 mm Stop (C-578 and C-344) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-588 | Undermount Bracket, 8mm Dowels, Universal Thick, 59 mm stop (C-578 and C-332) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-587 | Undermount Bracket, 8MM Dowels, Universal Thick, 55 mm Stop, Narrow (C-578 and C-312) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-586 | Undermount Bracket, 8MM Dowels, Universal Thick, Upper Stop (C-578 and C-279) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-585 | Undermount Bracket, 8MM Dowels, Universal Thick, 55 mm Stop (C-578 and C-238) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-583 | Undermount Bracket, 8MM Dowels, Universal Thick (C-578 and C-315) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-416-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-416 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-687-01 | Undermount Extension Adj. Bracket, Screw-On, Right | Screw-on | X = 1.5 mm, Y = 6.5 mm | Right | |
| C-687 | Undermount Extension Adj. Bracket, Screw-On, Left | Screw-on | X = 1.5 mm, Y = 6.5 mm | Left | |
| C-364-01 | Undermount Adj. Bracket, 10 mm Dowels, Right (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-788-01 | Undermount Adj. Bracket, 10mm Dowels, Right (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-788 | Undermount Adj. Bracket, 10mm Dowels, Left (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-787-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Right (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-787 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Left (For Blum Tandem Edge Slide Only) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-786-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (For Blum Tandem Edge Slide Only) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-503 | Undermount Bracket, 10 mm Dowels, No Stop, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-466 | Undermount Adj. Bracket, Screw-On | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-680 | Undermount Extension Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-579 | Undermount Bracket, 8mm Dowels, Universal Thick, 49 mm stop | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-573 | Undermount Adj. Bracket, 8mm Dowel (Top Slide) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-550-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-550 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-549-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-410-01 | Undermount Adj. Bracket, 8mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-410 | Undermount Adj. Bracket, 8mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-380-01 | Undermount Adj.Bracket, 10 mm Dowels, Right (Salice) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-380 | Undermount Adj.Bracket, 10 mm Dowels, Left (Salice) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-379 | Undermount Adj. Bracket, Screw-On (Salice) | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-364 | Undermount Adj. Bracket, 10 mm Dowels, Left (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-363-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-363 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-362-01 | Undermount Adj. Bracket, 10 mm Dowels, Right (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-362 | Undermount Adj. Bracket, 10 mm Dowels, Left (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-361 | Undermount Adj. Bracket, Screw-On (Top Slide) | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-360 | Undermount Adj. Bracket, 8 mm Dowels (Top Slide) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-359-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (Top Slide) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-465-01 | Undermount Adj. Bracket, 10 mm Dowels Short, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-465 | Undermount Adj. Bracket, 10 mm Dowels Short, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-464-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-464 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-463-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-463 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-462-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-462 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-340-01 | Undermount Adj. Bracket, 10mm Dowels, 1/8”, Right (Salice) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-340 | Undermount Adj. Bracket, 10mm Dowels, 1/8”, Left (Salice) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-320-01 | Undermount Adj. Bracket, 10 mm Dowel, 1/8” Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-320 | Undermount Adj. Bracket, 10 mm Dowel, 1/8” Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-319-01 | Undermount Adj. Bracket, 10 mm Dowel, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-319 | Undermount Adj. Bracket, 10 mm Dowel, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-317 | Undermount Adj. Bracket, Screw-On | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-549 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-547-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-547 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-544-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-544 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-378-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (Salice) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-378 | Undermount Adj. Bracket, 8 mm Dowels, Left (Salice) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-377-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (Salice) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-377 | Undermount Adj. Bracket, 8 mm Dowels, Left (Salice) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-359 | Undermount Adj. Bracket, 8 mm Dowels, Left (Top Slide) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-357-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-357 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-356-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-356 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-355 | Undermount Adj. Bracket, Screw-On | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-354 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-461 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-460-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-460 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-459-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-459 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-424-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-424 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-423-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-599 | Undermount Fixed Position Bracket 10 mm Dowels Fits Grass Elite & Hettich FAQ | 10mm | |||
| C-337-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-337 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-336-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-336 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-316 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-311-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (Top Slide) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-311 | Undermount Adj. Bracket, 8 mm Dowels, Left (Top Slide) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-310 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-309 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-308 | Undermount Adj. Bracket, 8 mm Dowels | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-543-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-543 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-542-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-542 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-540-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-540 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-353-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-353 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-352-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-352 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-348-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-348 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-347-01 | Undermount Adj. Bracket, 8 mm Dowels, Right (Top Slide) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-347 | Undermount Adj. Bracket, 8 mm Dowels, Left (Top Slide) | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-423 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-422-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-422 | Undermount Adj. Bracket, 10mm Dowels, 1/8”, Left, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-420-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short (Salice) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-420 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short (Salice) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-598 | Undermount Bracket, 8MM Dowels, Universal Thick, 57 mm Stop (C-578 and C-792) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-597 | Undermount Bracket, 8MM Dowels, Universal Thick, Stop on Bottom (Blum Tandem Edge) (C-578 and C-780) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-594 | Undermount Bracket, 8MM Dowels, Universal Thick, 59.5 mm Stop (C-578 and C-572) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-593 | Undermount Bracket, 8MM Dowels, Universal Thick, 45 mm Stop (C-578 and C-490) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-592 | Undermount Bracket, 8MM Dowels, Universal Thick, 64 mm Stop (C-578 and C-458) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-333 | Undermount Adj. Bracket, 8 mm Dowels (Salice) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-331 | Undermount Adj. Bracket, Screw-On (Top Slide) | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-329-01 | Undermount Adj Bracket, 10 mm Dowels, 1/8”, Right (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-329 | Undermount Adj Bracket, 10 mm Dowels, 1/8”, Left (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-328-01 | Undermount Adj Bracket, 10 mm Dowels, Right (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-328 | Undermount Adj Bracket, 10 mm Dowels, Left (Top Slide) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-327 | Undermount Adj. Bracket, 8mm Dowel (Top Slide) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-326-01 | Undermount Adj Bracket, 8mm Dowels, Right (Top Slide) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-326 | Undermount Adj Bracket, 8mm Dowels, Left (Top Slide) | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-301-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-301 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-300-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-300 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-299-01 | Undermount Adj. Bracket, 10mm dowels, 1/8", Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Right |
| C-299 | Undermount Adj. Bracket, 10 mm Dowels, 1/8", Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | Left |
| C-297-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-503-01 | Undermount Bracket, 10 mm Dowels, No Stop, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-366-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Right |
| C-366 | Undermount Adj. Bracket, 10 mm Dowels, Left (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.25 | Left |
| C-283-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-283 | Undermount Adj. Bracket, 10 mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-282-01 | Undermount Adj. Bracket, 8mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-345-01 | Undermount Adj. Bracket, 10 mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-343-01 | Undermount Adj. Bracket, 10 mm Dowels, Right (Salice) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-343 | Undermount Adj. Bracket, 10 mm Dowels, Left (Salice) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-418-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-418 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short (Top Slide) | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-417-01 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Right, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Right |
| C-417 | Undermount Adj. Bracket, 10 mm Dowels, 1/8”, Left, Short | 10mm | X = 3.5 mm, Y = 3 mm | 0.13 | Left |
| C-591 | Undermount Bracket, 8MM Dowels, Universal Thick, 47 mm Stop (C-578 and C-409) | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-325-01 | Undermount Adj Bracket, 8mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-325 | Undermount Adj Bracket, 8mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-324 | Undermount Adj Bracket, 8mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-323-01 | Undermount Adj Bracket, 8mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-323 | Undermount Adj Bracket, 8mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-322-01 | Undermount Adj. Bracket, 8mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-297 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-294-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Right |
| C-294 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 0 mm, Y = 3 mm | 0.13 | Left |
| C-282 | Undermount Adj. Bracket, 8mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-280 | Undermount Adj. Bracket, Screw-On | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-277 | Undermount Adj. Bracket, Screw-On, 45 mm stop | Screw-on | X = 1.5 mm, Y = 6.5 mm | ||
| C-322 | Undermount Adj. Bracket, 8mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| B-426 | Extension Bracket Screw-On | Screw-On | X = 1.5 mm, Y = 6.5 mm | ||
| B-423 | Extension Bracket 10 mm Dowels | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.13 | |
| B-422 | Extension Bracket 10 mm Dowels (C-291) | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | |
| B-421 | Extension Bracket 8 mm Dowels, Center | 8mm | X = 16 mm, Y = 3.5 mm | 0.13 | |
| C-254-01 | Undermount Adj. Bracket, 8 mm Dowels, Right | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Right |
| C-254 | Undermount Adj. Bracket, 8 mm Dowels, Left | 8mm | X = 3.5 mm, Y = 16 mm | 0.38 | Left |
| C-239-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-239 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
| C-235-01 | Undermount Adj. Bracket, 10mm Dowels, Right | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Right |
| C-235 | Undermount Adj. Bracket, 10mm Dowels, Left | 10mm | X = 3.5 (28) mm, Y = 8 mm | 0.25 | Left |
WE ARE READY TO SUPPORT YOUR PRODUCTION LINE
Need a quote, engineering support, or a dependable manufacturing partner? Tenn-Tex Plastics is ready to help keep production moving.
